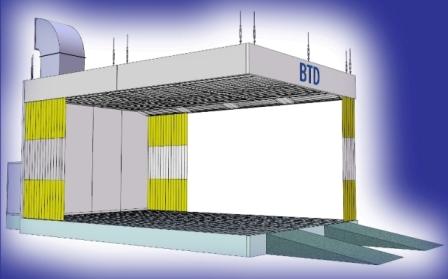

Specification (European Design)
Outside size：7870 x 3570 x 3610 mm （L x W x H）
Inside size：6300 x 3500 x 2800 mm （L x W x H）
Foundation and floor
Foundation:Full metal foundation, full grids, the grids are
suppressive type of steel grating instead of traditional twisted
steel for the cross bar steel grating. The biggest features for
it are beautiful, durable and better force bearing.
Surface area of foundation:20 M²（full galvanized grids）
Metal basement:350mm height, the ventilation effect is better
than traditional spray booth
Drive-in ramps:2 units drive-in ramps, each size: 2000X500mm，diamond plate structure
Wall and door
Wallboard and roof panel:Rear wall of cabin adopt high quality
double construction fireproof insulation EPS panel, thickness:
50mm, have function of fireproof and keeping warm. Roof panels
adopt galvanized steel plate bending forming
PVC curtain:There are PVC soft curtains install on front and two
sides of cabin
Lighting
Ceiling lighting:6Units, each4 x 36 W，total 864w，grade of lighting box's dustproof and waterproof reach IP54 grade.
Brightness:≥700 LUX
Filtration system
Ceiling Filters:EU5 grade high efficient filter
Bottom filter & exhaust filter:Fibreglass paint-stop filter
Ventilation system
Outlet fan (Direct Drive Motor):Adopt big impeller turbo fan
7.5KW，380V，50HZ
Fan gate adjustment:Use electric damper driven to adjust the
return air of damper
Fan Capacity:25.000m³/h
Control Board
Control system:Standard Y/Δstep-down start control system
Function:Fan start, electric damper adjust, emergency stop
switch, failure indication
|
