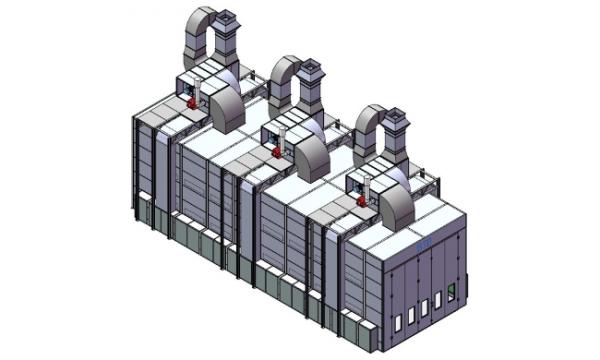

Bus Spray Booth (BTD 22-60-A)

Certificate
1
Commend
0





Item Number
BTD 22-60-A

Description

Bus spray booth of specification:

Booth Dimensions
- Internal Size(L*B*H)22000*6000*5000 mm
- External Size(L*B*H)22150*6160*8000 mm
Foundation and Floor
- Loading Capacity of Galvanized Grating: NO
- Surface Area: 48M*2 2 rows air exhust plenum chamber
- Metal Basement: NO
- Drive-in Ramps: NO
Wall and Door
- Steel Wall and Roof Panel Double Construction with Insulations EPS 60mm
- Thickness Double Construction with Insulations EPS 50mm
3-Folded Entrance Door With Safety Glass Window: 5300*4800 mm (B*H)
-Operators Door With Safety, Glass Window: 800*2000 mm (B*H) 2PCS
Lighting
- Ceiling Lightings: 24 Units, each 4*36 W, Total 3456W
- Side Lightings: 28 Units, each 2*36 W, Total 2016W
- Brightness: >1000 Lux, IP54 Grade
Filtration
- Prefilters Fiberglass, Paint-Stop-Filters Plate type duel filters
- Ceiling Filters EU5 Fine Filters, 6 Units
- Floor Filters Fiberglass, Paint-Stop-Filters
Ventilation System
-Direct Drive Motor (Fresh Air): 3*11KW, 970RPM, 380V, 50 HZ, motor certificationCE
-Direct Drive Motor (Exhaust Air): 3*11KW, 970RPM, 380V, 50HZ Domesti motor certificationCE
- Fan Capacity: 90000m*3/h
- Air Flow Speed: +/- 0.25 m/s in an empty booth
Heating System
- Heating Exchanger: Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity: 315KW(340.000cal/H) RIELLO
-Max. Drying Temperature: 80 degree
- Heating time: 10-15 min (from 20 to 60 degree)by Drying Phase
-Heating Type (on option): Diesel / Gas Burner
Control Board
-Control system: Stander control Delta Depressurization start system EN60204-1-2006
-Function
Spraying, baking, warming spray paint, emergency stop switch
-PLC: Yes
-Inverter control: On option
-Import element: Master device import element
-Overpressure Manometer: Yes
- Alarm equipment: Yes


Features

Foundation and Floor
- Loading Capacity of Galvanized Grating: NO
- Surface Area: 48M*2 2 rows air exhust plenum chamber
- Metal Basement: NO
- Drive-in Ramps: NO
Wall and Door
- Steel Wall and Roof Panel Double Construction with Insulations EPS 60mm
- Thickness Double Construction with Insulations EPS 50mm
3-Folded Entrance Door With Safety Glass Window: 5300*4800 mm (B*H)
-Operators Door With Safety, Glass Window: 800*2000 mm (B*H) 2PCS
Lighting
- Ceiling Lightings: 24 Units, each 4*36 W, Total 3456W
- Side Lightings: 28 Units, each 2*36 W, Total 2016W
- Brightness: >1000 Lux, IP54 Grade
Filtration
- Prefilters Fiberglass, Paint-Stop-Filters Plate type duel filters
- Ceiling Filters EU5 Fine Filters, 6 Units
- Floor Filters Fiberglass, Paint-Stop-Filters
Ventilation System
-Direct Drive Motor (Fresh Air): 3*11KW, 970RPM, 380V, 50 HZ, motor certificationCE
-Direct Drive Motor (Exhaust Air): 3*11KW, 970RPM, 380V, 50HZ Domesti motor certificationCE
- Fan Capacity: 90000m*3/h
- Air Flow Speed: +/- 0.25 m/s in an empty booth
Heating System
- Heating Exchanger: Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity: 315KW(340.000cal/H) RIELLO
-Max. Drying Temperature: 80 degree
- Heating time: 10-15 min (from 20 to 60 degree)by Drying Phase
-Heating Type (on option): Diesel / Gas Burner
Control Board
-Control system: Stander control Delta Depressurization start system EN60204-1-2006
-Function
Spraying, baking, warming spray paint, emergency stop switch
-PLC: Yes
-Inverter control: On option
-Import element: Master device import element
-Overpressure Manometer: Yes
- Alarm equipment: Yes


Specification

Internal Size(L*B*H)22000*6000*5000 mm
- External Size(L*B*H)22150*6160*8000 mm
