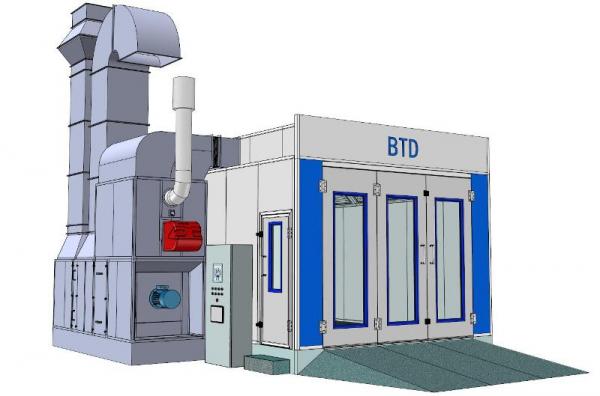

Outside Size:(mm)7110 x 5800x 3810(L x W x H)
Inside Size:(mm)7000 x 4000 x 2800(L x W x H)
Foundation and Floor
Basement:Full metal foundation, full grids, the grids are
suppressive type of steel grating instead of traditional
twisted steel for the cross bar steel grating. The biggest
features for it are beautiful, durable and better force bearing.
Surface area of foundation:27M²(Full Galvanized Grids )
Metal Basement:350mm height, the ventilation effect is better
than traditional spray booth
Drive-in Ramps:3Units,each size:2000×1030 mm(B×H),diamond plate construction
Wall and Door
Wallboard and Roof Panel:Side wall panels adopt high quality
double construction fireproof rock wool insulation materials,
thickness is 50mm, have function of fireproof and keeping warm.
Roof panels adopt galvanized steel plate bending forming

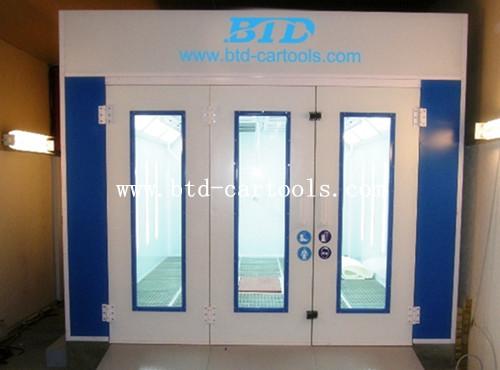

3-Folded Entrance Door With Safety Glass Window :1 set, size of
opening:3200x2700 mm(B x H), large tempering glass observation window, size is
bigger and view is better than traditional spray booth
Operator's Door With Safety Glass Window:Large opening size: 800x2000mm(B x H)hand-made, tempering glass observation window
Spray gun hanging system :Install hanging arm in cabin, convenient
for operators to hang spray gun, etc.
Lighting System Ceiling Lighting:8Units, each4×58W, Total 1856W,
grade of lighting box's dustproof and waterproof reach IP54 grade.
Side Lighting:8Units, each2×58W, Total 928W, grade of lighting
box's dustproof and waterproof reach IP54 grade.
Brightness:≥ 1500 LUX
Filtration
Pre-filters:EU3 grade pocket filter system, filtration effect is much better
Ceiling Filters:EU5 grade high efficient filter
Bottom filter & exhaust filter: Fibreglass paint-stop filter, G2 Grade
Air
Ventilation System
Inlet fan (Direct Drive Motor):Adopt big impeller turbo fan 11KW ,6-pole motor, 970RMP ,380V,50HZ,CE
Outlet fan (Direct Drive Motor):Adopt big impeller turbo fan 11KW , 6-pole motor, 970RMP ,380V,50HZ,CE
Painting and baking exchange system:Solenoid valve+ pressure
adjustment control cylinder driven damper exchange
Fan Capacity:32.000m³/h
Air Flow Speed:0.30m/s , Inverter control
Heating System
Heating exchanger:Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Heating exchange capacity:320KW(340.000Kcal/H)
Burner Model:Adopt Italy REILLO diesel burner RL34 ,(340.000kcal/H),quicker heating and much better effect, more rest assure for quality
Heating Time:2-4 minutes (from 20 to 60ºС) under baking status,
max baking temperature is 80°C
Control Board
Control System:Inverter control system
PLC controller:Yes, PLC control system, more reliable, lower
breakdown rate
Humancomputer interface touching screen control system:Yes,
touching screen control
Inverter control:Inverter control , more energy-saving, more economic
Function:Painting, warm painting, baking, leveling, emergency
stop switch, inverter, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection |
