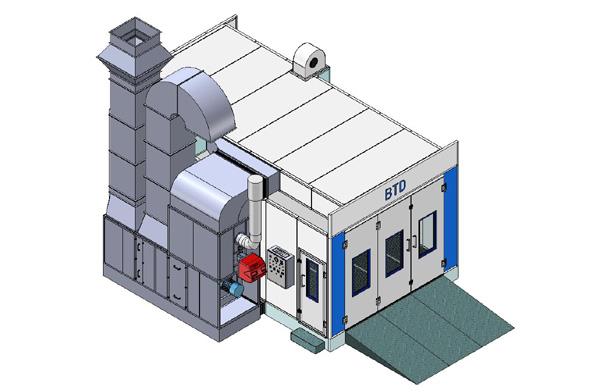

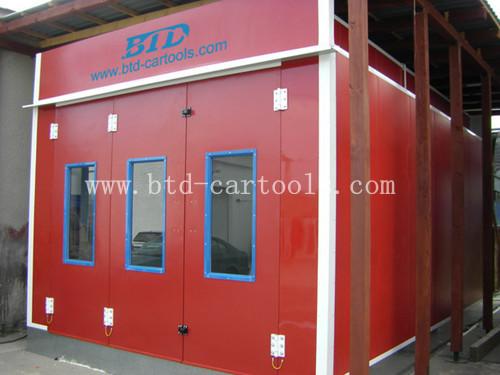

Spray Booth BTD 7500-1 Water Painting with 36 Nozzles

Certificate
1
Commend
0





Item Number
BTD 7500-1

Description

Water painting spray booth with 36 nozzles of Specification:

1. Outside Size: (mm) 7110*5570* 3810mm ( L* W*H ) Main doors 3-fold, 3200* 2700mm ( W*H ); Inside Size: (mm) 7000*4000* 2800mm ( L*W*H ) Service door 1-fold, 800* 2000mm ( W*H )

2. Cabin System:
(1)Wallboard: EPS (epispastics polystyrene)Colorful Steel Skin Boards, tongue and groove style, compound construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation, thickness: 70mm
(2)Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps

3. Air Circulation System:
(1)Inhaling Ventilator:
<1>. Turbo Inlet Fan: A. Blower Capacity: 32000m3 /h
B. Pressure: 800 Pa. C. Rolling Sped: 940rmp; D. Power: 7.5 kw; E. Quantity: 1 sets
(2)Exhaust Ventilator
<1>Turbo ou tlet Fan
A. Blower Capacity: 28000m3 /h; B. Pressure: 800Pa; C. Rolling Sped: 900rmp; D. Power: 7.5kw; E. Quantity: 1 set
(3)Air Volume: 30000m3 /h; Air Speed: 0.35m /s

4. Water painting system:
36 nozzles distributing to three lines in ceiling; 3 additional small fans for water painting, power: 1.5 KW / set.

5. Air Purification System: Dual Filtering Structure, The Primary Filter can capture granules larger than 10 um. Ceiling Filter capture granules bigger than 5 um. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure gauge, TSP ≤ 1.4mg/m3.

6. Heating System:
(1)Burner: Italy Riello Brand, RG5S Diesel Burner, 26000Kca/h.
(2)Heat exchanger:Stainless Steel,200KW, Argon Arc Welding, the heat exchange rate 85%
(3)Max Temp: 80 degree, ceating Time: 3-5 min(20 -60 degree ), Fuelconsumption: 4 -5kg /vehicle

7. Light System:
(1)Ceiling Light: 8 unitsx4Pcs=32Pcs, 36W ,total 1152W OSRAM Lamp; (2)Bottom Light: 10 pcs 2 X 36W,total 720W OSRAM Lamp, 1500Lux,IP54 Grade with tempered glass

8. Electric Controlling System: Micro Computer Program Controlling, spray & baking switch, light switch. Emergency stop, breakdown alarm

9. Environmental System: Multi-layer fiberglass filter


Features

2. Cabin System:
(1)Wallboard: EPS (epispastics polystyrene)Colorful Steel Skin Boards, tongue and groove style, compound construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation, thickness: 70mm
(2)Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps

3. Air Circulation System:
(1)Inhaling Ventilator:
<1>. Turbo Inlet Fan: A. Blower Capacity: 28000m3 /h
B. Pressure: 800 Pa. C. Rolling Sped: 940rmp; D. Power: 7.5 kw; E. Quantity: 1 sets
(2)Exhaust Ventilator
<1>Turbo ou tlet Fan
A. Blower Capacity: 28000m3 /h; B. Pressure: 800Pa; C. Rolling Sped: 900rmp; D. Power: 7.5kw; E. Quantity: 1 set
(3)Air Volume: 32000m3 /h; Air Speed: 0.35m /s

4. Water painting system:
36 nozzles distributing to three lines in ceiling; 3 additional small fans for water painting, power: 1.5 KW / set.

5. Air Purification System: Dual Filtering Structure, The Primary Filter can capture granules larger than 10 um. Ceiling Filter capture granules bigger than 5 um. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure gauge, TSP ≤ 1.4mg/m3.

6. Heating System:
(1)Burner: Italy Riello Brand, RG5S Diesel Burner, 26000Kca/h.
(2)Heat exchanger:Stainless Steel,200KW, Argon Arc Welding, the heat exchange rate 85%
(3)Max Temp: 80 degree, ceating Time: 3-5 min(20 -60 degree ), Fuelconsumption: 4 -5kg /vehicle

7. Light System:
(1)Ceiling Light: 8 unitsx4Pcs=32Pcs, 36W ,total 1152W OSRAM Lamp; (2)Bottom Light: 10 pcs 2 X 36W,total 720W OSRAM Lamp, 1500Lux,IP54 Grade with tempered glass

8. Electric Controlling System: Micro Computer Program Controlling, spray & baking switch, light switch. Emergency stop, breakdown alarm

9. Environmental System: Multi-layer fiberglass filter


Specification

Outside Size: (mm) 7130*5600* 3800mm ( L* W*H ) Main doors 3-fold, 3200* 2700mm ( W*H ); Inside Size: (mm) 7000*4000* 2800mm ( L*W*H ) Service door 1-fold, 800* 2000mm ( W*H )
