RP-SMA connector

Certificate
0
Commend
1





Item Number

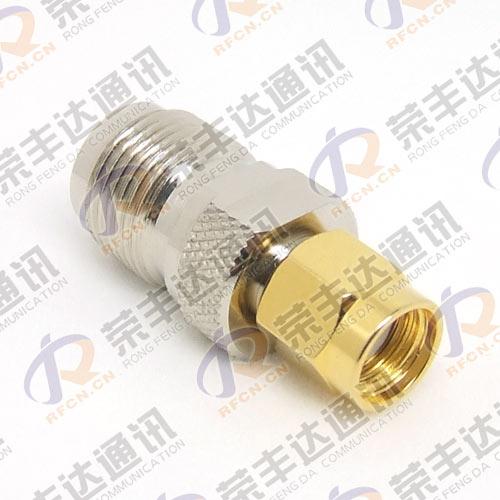

RP-SMA-JWE-2

Description

Series of RP-SMA products one application extensive small-scale coaxial person who join that whorl join. It meet with the standard of MIL-C-39012, IEC169-15 & CECC22110. It has reliable characteristics, durable, performance are excellent, long life-span. Suitable for the microwave equipment and body of the digital communication system and join the body in the cable or the micro-strip line frequently
in the loop frequently.


Features

Main feature:

Main technical characteristics:
Temperature range: -65+165
Characteristic impendance: 50Ω
Working voltage: 335V max (efficient value)
Frequency range soft cable: 0-12.4GHz; Semi-rigid cable 0-18GHz
Dielectric withstand voltage sea level: 1000V (volts RMS)
Contact resistance inner conductor: ≤3mΩ, outer conductor: ≤2mΩ
Insulation resistance ≥5000MΩ
Insertion loss 0.15dB at 6GHz
RF leakage Frequency: 2-3GHz -60dB(soft cable); -90dB (semi-rigid cable)

V. S. W. R:
Straight connect soft cable ≤1.15+0.02f
Right angle connect soft cable ≤1.20+0.03f
Straight connect semi-rigid cable ≤1.05+0.01f
Right angle connect semi-rigid cable ≤1.10+0.01f.

Material & plating:
Shell Brass plated by hard gold or purification of stainless steel surface
Contact pin Brass plated by hard gold
Socket Beryllium plated by hard gold
Insulator PTFE
Sealing Silastic
Crimping suite copper alloy plated by nickel

Machine performance:
Durable of connector 500 times.
