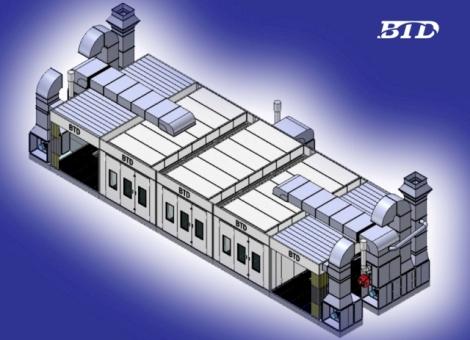

7M Preparation-Painting and Drying Production Line (BTD 2B)

Certificate
1
Commend
0





Item Number
BTD 2B

Description

7M Preparation-Painting and Drying production line of specification :
1.Booth Dimensions
- Internal Size(L*B*H)
Preparation :7000*4000*2800mm
Painting booth :7000*4000*2800mm
Drying booth: 7000*5500*2800mm
- External Size(L*B*H): 8650*25000*3460mm
2.Foundation and Floor
-Loading Capacity of Galvanized
Grating :650KG/ wheel,
- Surface Area :27M*2 Full Galvanized Grating gills*5unit
- Metal Basement:800mm Height should be need to dig foundation
- Drive-in Ramps NO
Wall and Door
- Steel Wall and Roof Panel Double Construction with Insulations EPS 60mm
-Thickness with Insulations EPS 50mm
5-Folded Entrance Door With Safety Glass Window 3200*2700 mm (B*H) -3unit
-Operators Door With Safety ,Glass Window 800*2000  mm (B*H)   2PCS
3.Lighting
- Side Lightings
Preparation  : 24 Units, each 4*58W, Total 1392W
Painting booth : 32 Units, each 4*58W,  Total 1856W
Drying booth: 4 Units,  each 2*58W, Total 464W
- Brightness Preparation:  >800 Lux,  IP54 Grade
Painting booth :>1000 Lux, IP54 Grade
Drying booth : >300 Lux,  IP54 Grade
4.Filtration
- Prefilters Fiberglass,Paint-Stop-Filters Plate type duel filters
- Ceiling Filters EU5 Fine Filters, 6 Units
- Floor Filters Fiberglass, Paint-Stop-Filters
Ventilation System 2 Unit Preparation
-Direct Drive Motor (Fresh Air):1*5.5KW,970RPM,380V,50HZ  motor
certificationC
-Direct Drive Motor (Exhaust Air) NO
- Fan Capacity  18000m*2m/h
- Air Flow Speed  +/- 0.15m/s
Ventilation System 2Unti Painting booth
-Direct Drive Motor (Fresh Air):2*7.5KW,970RPM,380V,50HZ  motor certificationCE
-Direct Drive Motor (Exhaust Air):2*7.5KW,970RPM,380V,50HZ Domestic motor certificationCE
- Fan Capacity  25000m*3m/h
- Air Flow Speed  +/- 0.28m/s in an empty booth
Ventilation System 1 Unit Drying booth
-Direct Drive Motor (Fresh Air):1*7.5KW,970RPM,380V,50HZ  motor certificationCE
-Direct Drive Motor (Exhaust Air) NO
- Fan Capacity  25000m*3m/h
- Air Flow Speed  +/- 0.28m/s in an empty booth
Heating System 2Unit  Painting booth
- Heating Exchanger Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity 2*200KW(260.000cal/H) RIELLO
- Max. Drying Temperature  80 degree
- Heating time:3-5 min (from 20 to 60 degree) by Drying Phase
Heating System 1Unit Drying booth
- Heating Exchanger  Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity  2*200KW(260.000cal/H) RIELLO
- Max. Drying Temperature   80 degree
- Heating time:3-5 min (from 20 to 60 degree) by Drying Phase
- Heating Type  Diesel
6.Control Board
- Control system Stander control
Delta: Depressurization
start system: EN60204-1-2006
- Function:Spraying ,baking, warming
spray paint, emergency stop switch
- PLC  yes
- Import element  master device import element
- Overpressure Manometer  yes
- Alarm equipment  yes


Features

2.Foundation and Floor
-Loading Capacity of Galvanized
Grating :650KG/ wheel,
- Surface Area :27M*2 Full Galvanized Grating gills*5unit
- Metal Basement:800mm Height should be need to dig foundation
- Drive-in Ramps NO
Wall and Door
- Steel Wall and Roof Panel Double Construction with Insulations EPS 60mm
-Thickness with Insulations EPS 50mm
5-Folded Entrance Door With Safety Glass Window 3200*2700 mm (B*H) -3unit
-Operators Door With Safety ,Glass Window 800*2000  mm (B*H)   2PCS
3.Lighting
- Side Lightings
Preparation  : 24 Units, each 4*58W, Total 1392W
Painting booth : 32 Units, each 4*58W,  Total 1856W
Drying booth: 4 Units,  each 2*58W, Total 464W
- Brightness Preparation:  >800 Lux,  IP54 Grade
Painting booth :>1000 Lux, IP54 Grade
Drying booth : >300 Lux,  IP54 Grade
4.Filtration
- Prefilters Fiberglass,Paint-Stop-Filters Plate type duel filters
- Ceiling Filters EU5 Fine Filters, 6 Units
- Floor Filters Fiberglass, Paint-Stop-Filters
Ventilation System 2 Unit Preparation
-Direct Drive Motor (Fresh Air):1*5.5KW,970RPM,380V,50HZ  motor
certificationC
-Direct Drive Motor (Exhaust Air) NO
- Fan Capacity  18000m*2m/h
- Air Flow Speed  +/- 0.15m/s
Ventilation System 2Unti Painting booth
-Direct Drive Motor (Fresh Air):2*7.5KW,970RPM,380V,50HZ  motor certificationCE
-Direct Drive Motor (Exhaust Air):2*7.5KW,970RPM,380V,50HZ Domestic motor certificationCE
- Fan Capacity  25000m*3m/h
- Air Flow Speed  +/- 0.28m/s in an empty booth
Ventilation System 1 Unit Drying booth
-Direct Drive Motor (Fresh Air):1*7.5KW,970RPM,380V,50HZ  motor certificationCE
-Direct Drive Motor (Exhaust Air) NO
- Fan Capacity  25000m*3m/h
- Air Flow Speed  +/- 0.28m/s in an empty booth
Heating System 2Unit  Painting booth
- Heating Exchanger Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity 2*200KW(260.000cal/H) RIELLO
- Max. Drying Temperature  80 degree
- Heating time:3-5 min (from 20 to 60 degree) by Drying Phase
Heating System 1Unit Drying booth
- Heating Exchanger  Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity  2*200KW(260.000cal/H) RIELLO
- Max. Drying Temperature   80 degree
- Heating time:3-5 min (from 20 to 60 degree) by Drying Phase
- Heating Type  Diesel
6.Control Board
- Control system Stander control
Delta: Depressurization
start system: EN60204-1-2006
- Function:Spraying ,baking, warming
spray paint, emergency stop switch
- PLC  yes
- Import element  master device import element
- Overpressure Manometer  yes
- Alarm equipment  yes


Specification

Booth Dimensions
- Internal Size(L*B*H)
Preparation :7000*4000*2800mm
Painting booth :7000*4000*2800mm
Drying booth: 7000*5500*2800mm
- External Size(L*B*H): 8650*25000*3460mm
