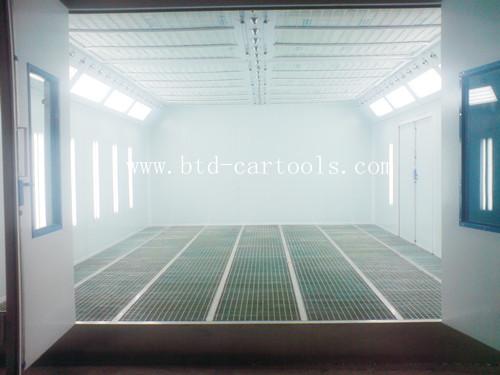

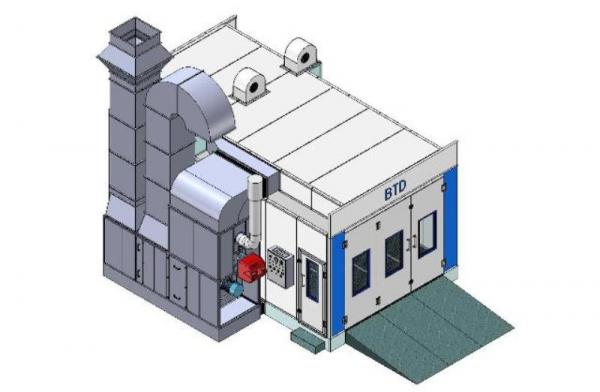

Spray Booth BTD 7500-1 (Water Painting with 58 Nozzles)

Certificate
1
Commend
0





Item Number
BTD 7500-1

Description

Spray booth BTD 7500-1( water painting with 58 nozzles)of specfication:

1. Outside Size: (mm)7110*5800* 3810mm ( L* W*H ) Main doors: 3-fold, 3200* 2700mm ( W*H ); Inside Size: (mm) 7000*4000* 2800mm ( L*W*H ) Service door 1-fold, 800* 2000mm ( W*H )

2. Cabin System:
Wallboard: EPS (epispastics polystyrene)Colorful Steel Skin Boards, tongue and groove style, compound
Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation, thickness: 70mm

3. Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps

4. Air Circulation System: Inhaling Ventilator Turbo Inlet Fan Blower Capacity: 35000m3 /h; Pressure: 800 Pa. Rolling Sped: 940rmp; Power: 7.5 kw Quantity: 1 sets Exhaust Ventilator Turbo ou tlet Fan; Blower Capacity: 35000m3 /h; Pressure: 800Pa; Rolling Sped: 900rmp; Power: 7.5kw; Quantity: 1 set; Air Volume: 35000m3 /h; Air Speed: 0.4m /s

5. Water painting system: 58 nozzles distributing to three lines in ceiling; 3 additional small fans for water painting, power: 1.5 KW / set

6. Air Purification System: Dual Filtering Structure, The Primary Filter can capture granules larger than 10 um. Ceiling Filter capture granules bigger than 5 um. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure gauge, TSP ≤ 1.4mg/m3.

7. Heating System:
Burner: Italy Riello Brand, RG5S Diesel Burner, 26000Kca/h; Heat exchanger:Stainless Steel,200KW, Argon Arc Welding, the heat exchange rate 85%; Max Temp: 80 degree, ceating Time: 3-5 min(20 -60 degree ), Fuelconsumption: 4 -5kg /vehicle

8. Light System: Ceiling Light: 8 unitsx4Pcs=32Pcs, 36W,total 1152W OSRAM Lamp; Bottom Light: 10pcs 2 X 36W ,total 720W OSRAM Lamp, 1000Lux.IP54 grade with tempered glass

9. Electric Controlling System: Micro Computer Program Controlling, spray & baking switch, light switch. Emergency stop, breakdown alarm

10. Environmental System: Multi-layer fiberglass filter.


Features

2. Cabin System:
Wallboard: EPS (epispastics polystyrene)Colorful Steel Skin Boards, tongue and groove style, compound
Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation, thickness: 70mm

3. Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps

4. Air Circulation System: Inhaling Ventilator Turbo Inlet Fan Blower Capacity: 35000m3 /h; Pressure: 800 Pa. Rolling Sped: 940rmp; Power: 7.5 kw Quantity: 1 sets Exhaust Ventilator Turbo ou tlet Fan; Blower Capacity: 35000m3 /h; Pressure: 800Pa; Rolling Sped: 900rmp; Power: 7.5kw; Quantity: 1 set; Air Volume: 35000m3 /h; Air Speed: 0.4m /s

5. Water painting system: 58 nozzles distributing to three lines in ceiling; 3 additional small fans for water painting, power: 1.5 KW / set

6. Air Purification System: Dual Filtering Structure, The Primary Filter can capture granules larger than 10 um. Ceiling Filter capture granules bigger than 5 um. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure gauge, TSP ≤ 1.4mg/m3.

7. Heating System:
Burner: Italy Riello Brand, RG5S Diesel Burner, 26000Kca/h; Heat exchanger:Stainless Steel,200KW, Argon Arc Welding, the heat exchange rate 85%; Max Temp: 80 degree, ceating Time: 3-5 min(20 -60 degree ), Fuelconsumption: 4 -5kg /vehicle

8. Light System: Ceiling Light: 8 unitsx4Pcs=32Pcs, 36W,total 1152W OSRAM Lamp; Bottom Light: 10pcs 2 X 36W ,total 720W OSRAM Lamp, 1000Lux.IP54 grade with tempered glass

9. Electric Controlling System: Micro Computer Program Controlling, spray & baking switch, light switch. Emergency stop, breakdown alarm

10. Environmental System: Multi-layer fiberglass filter.


Specification

Outside Size: (mm)7130*5600* 3800mm ( L* W*H ) Main doors: 3-fold, 3200* 2700mm ( W*H ); Inside Size: (mm) 7000*4000* 2800mm ( L*W*H ) Service door 1-fold, 800* 2000mm ( W*H )
