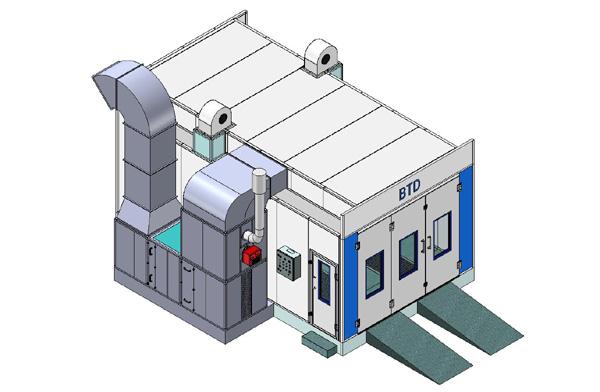

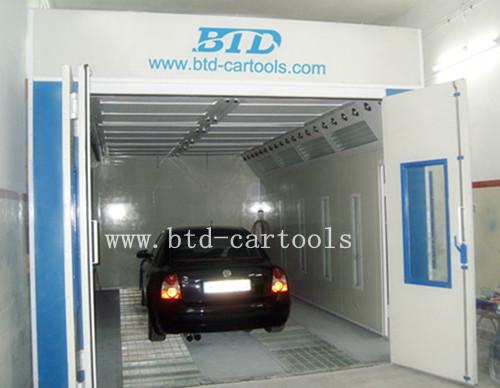

Specification（European design）
Outside Size:（mm）7010 x 5570 x 3810 mm （L x W x H）
Inside Size（mm）6900 x 4000 x 2800 mm （L x W x H）
Foundation and Floor
Foundation:Full metal foundation, two rows flat steel grids and three
rows metal non-slip diamond plates, the grids are suppressive type of steel
grating instead of traditional twisted steel for the cross bar steel grating. The biggest
features for it are beautiful, durable and better force bearing.
Surface area of foundation:10M²（area of grids）
Metal basement:350mm height, the ventilation effect is better than traditional
spray booth
Drive-in Ramps:2Units, each size: 2000X1030mm, diamond plate construction
Wall and door
Wallboard and Roof Panel:Adopt high quality double construction fireproof
insulation EPS panel, thickness: 50mm
3-Folded Entrance Door With Safety Glass Window:1 set, size: 3200x2700 mm
（B x H），size is bigger than traditional spray booth
-Operator's Door With Safety Glass Window Big opening：800x2000mm
(B x H)，hand-made, tempering glass observation window
Light System
Ceiling Lighting:8Units, each4×36W, Total 1152W, grade of lighting box's
dustproof and waterproof reach IP54 grade.
Side Lighting :8Units, each2×36W, Total 576W, grade of lighting box's
dustproof and waterproof reach IP54 grade.
Brightness:≥1000 LUX
Filtration System
Pre-filters Grade: G2 plate type fiber glass filter
Ceiling Filters:EU5 grade high efficient filter
Bottom filter & exhaust filter :Fiberglass paint-stop filter
Ventilation System
Inlet fan (Direct drive motor): Adopt big impeller turbo fan 7.5KW ，
380V，50HZ，CE
Outlet fan (Direct drive motor):Adopt big impeller turbo fan 5.5KW ，
380V，50HZ，CE
Fan for water-based paints :On top of cabin installs 2 sets of 1.5kw centrifugal fans,
increase system air supply capacity to dry quicker
Painting nozzles:Install two rows of nozzles on position of ceiling lighting box
Painting and baking exchange system:Solenoid valve+ pressure adjustment
control cylinder driven damper exchange
Total fan Capacity:32,000m³/h
Air Flow Speed in cabin:0. 3m/s in empty booth , 0.30-0.45m/s in loaded booth
Heating System
Heating Exchanger :Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Heating Exchange Capacity:160KW(180,000Kcal/H)
Burner Model :Adopt Italy RIELLO diesel burner G20（180,000kcal/H）
Heating time :4-6minutes (from20 to 60ºС) under baking status, max baking temperature is 80°C
Control Board
Control system:Standard Y/Δstep-down start control system
Function:Painting, warm painting, baking, lighting, emergency stop switch,
failure indication, over-temperature alarm indication |
